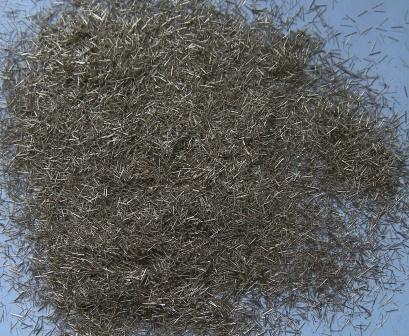

MF-Bz100a
|
|
|
Features and applications of copper & alloy short fibers
The fibers are processed from metal billet, which results in an irregular cross section and multiple lobed sides to increase overall surface area for a given fiber diameter rating. Depending on the application, the increase in surface area range from 30% to 400%. That is, our fibers offer suitable characters of perfect properties of heat transfer and friction assures stable friction, lower noise, anti-vibration and comfortable; therefore it is broadly applied in frictional fields, such as automotive brake pads, disc brake, drum brake, clutch facing etc.
|
Metal Fiber |
Grade: MF-Bz100a |
|
NO. |
Item |
Description |
Test Method |
|
1 |
Size |
Width |
95±15 μm |
INTM
  |
|
Length |
2.70±0.30 mm |
|
2


  |
Chemical
Composition
Bronze
  |
Cu |
82~87% |

GB/T 5121

  |
|
Sn |
4~6% |
|
Zn |
4~6% |
|
Pb |
4~6% |
|
3 |
Tap Volume |
0.8~1.1ml/g |
INTM |
|
4 |
Oil Residue |
≤0.10% |
INTM |
|
5




  |
Ro-tap Screening Analysis |
Sieve No. |
% Residue |


INTM


  |
|
14 |
0 |
|
45 |
0~5 |
|
100 |
40~70 |
|
200 |
30~50 |
|
PAN |
0~10 |
|
6
  |
Packaging
  |
1) Packaging Material: PE & carton; |
|
2) Special requirements according to your idea | |
|
