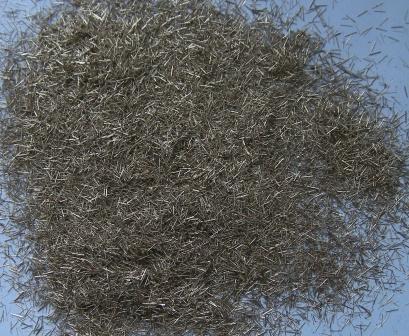

Features and applications of copper & alloy short fibers
The fibers are processed from metal billet, which results in an irregular cross section and multiple lobed sides to increase overall surface area for a given fiber diameter rating. Depending on the application, the increase in surface area range from 30% to 400%. That is, our fibers offer suitable characters of perfect properties of heat transfer and friction assures stable friction, lower noise, anti-vibration and comfortable; therefore it is broadly applied in frictional fields, such as automotive brake pads, disc brake, drum brake, clutch facing etc.
|
Metal Fiber |
Grade: MF-IN100a |
|
NO. |
Item |
Description |
Test Method |
|
1
　 |
Fiber Size |
Width |
95±15 μm |
INTM
　 |
|
Length |
3.6±0.3 mm |
|
1 |
Chemical
Composition
　
　 |
C |
≤0.015% |
　
GB 223
　
　　 |
|
Si |
≤0.10% |
|
Mn |
≤0.30% |
|
S |
≤0.020% |
|
P |
≤0.020% |
|
4 |
Tap Density |
0.80～1.40 g /ml |
INTM |
|
5 |
Oil Residue |
≤0.1 % |
INTM |
|
6 |
Ro-tap
Screening
Analysis
　　 |
Sieve Size(μm) |
% Retained |
　
　
INTM
　
　
　 |
|
1180(16 mesh) |
0 |
|
355(45 mesh) |
0～6 |
|
150(100 mesh) |
30～70 |
|
75(200 mesh) |
35～65 |
|
PAN |
0～5 |
|
7 |
Packaging |
1) Packaging Material: Kraft |
|
2) Special requirements according to your idea | |
